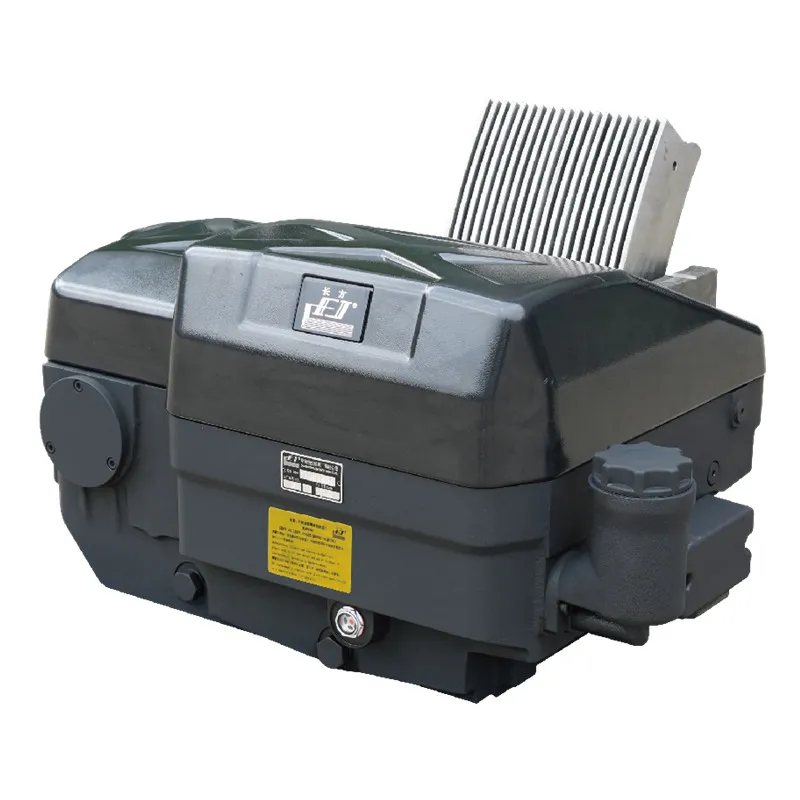

How Does the D2861B Electronically Controlled Rotary Dobby Enhance Weaving Precision and Production Efficiency?

In modern textile manufacturing, shedding devices play a critical role in determining fabric quality, loom speed, and production flexibility. The D2861B Electronically Controlled Rotary Dobby from CHANGFANG is a high‑performance shedding solution designed for rapier looms, offering double‑lift, full‑open shed operation with electronic pattern control. With a maximum speed of 650 rpm, 20 cam positions, and a 12,800 weft capacity, this dobby delivers stable, high‑speed shedding for a wide range of woven fabrics. This article examines its technical specifications, structural advantages, and the manufacturing heritage that makes CHANGFANG a trusted name in textile machinery.

The Role of Shedding Devices in Weaving Performance

The shedding mechanism is responsible for separating warp threads into two layers to allow the weft to pass through. The quality of shedding directly affects fabric density, pattern accuracy, and loom efficiency. Traditional mechanical dobbies are limited by fixed cams and mechanical pattern chains, restricting pattern complexity and speed. Electronically controlled dobbies overcome these limitations by using electromagnets and a programmable controller to select hooks, enabling rapid pattern changes and higher operating speeds.

CHANGFANG has been a leader in shedding device development for over sixty years. Its D2861B Electronically Controlled Rotary Dobby represents the latest evolution in this technology, combining robust construction with electronic precision. Designed for rapier looms, this dobby supports complex weaves while maintaining stable performance at high speeds, making it a preferred choice for modern weaving mills.

Key Technical Specifications

The following table summarises the core parameters of the D2861B Electronically Controlled Rotary Dobby from CHANGFANG.

Structural Design and Reliability Features

The D2861B is built with a conjugate cam drive structure that ensures compact, efficient power transmission. Conjugate cams with different static angles can be selected to output the optimal motion curve for various loom requirements, ensuring stable heald frame operation at high speeds. This design minimises vibration and wear, extending the service life of both the dobby and the loom.

High‑precision bearings are used in the heald lifting unit, providing greater load‑bearing capacity and reliable operation even under demanding conditions. The hook selection unit converts electrical signals from the electromagnet, featuring high‑frequency absorption and release capability for clear, fast switching. This ensures accurate pattern execution and reduces the risk of missed picks or fabric defects.

Electronic Control for Flexible and Complex Weave Patterns

The electronic pattern control system of the D2861B allows weavers to store and recall up to 12,800 wefts, enabling rapid style changes without the need for mechanical pattern chains or punched cards. This flexibility is particularly valuable for mills that produce small batches or custom designs, as it reduces downtime between style changes and minimises waste.

The system uses electromagnets to select individual hooks, providing precise control over each heald frame. The response time is fast, allowing the dobby to operate reliably at speeds up to 650 rpm. Combined with the double‑lift, full‑open shed action, this electronic control ensures consistent shed geometry and clean weft insertion, contributing to higher fabric quality and reduced rejection rates.

Lubrication System for Long‑Term Operation

The D2861B features a vane pump oil recycle lubrication system that ensures all moving parts receive a constant supply of clean oil. This system reduces friction, dissipates heat, and minimises wear, extending the interval between maintenance intervals. The oil circulation also helps flush away contaminants, maintaining the precision of bearings and cam surfaces.

This lubrication design is particularly advantageous for mills operating multiple shifts, as it reduces the need for frequent manual lubrication and helps maintain consistent performance over extended production runs. The system is easy to monitor and maintain, with clear oil level indicators and accessible fill points.

Application Scenarios and Loom Compatibility

The D2861B Electronically Controlled Rotary Dobby is specifically designed for rapier looms, which are widely used for weaving medium to heavy fabrics in cotton, wool, and man‑made fibres. Key applications include:

• Apparel fabrics – Shirting, suiting, and denim with complex weave patterns.

• Home textiles – Upholstery, curtains, and bed linens requiring fine design details.

• Technical textiles – Industrial fabrics, filtration materials, and composites.

• Specialty weaves – Jacquard‑type effects and multi‑colour patterns.

Its compatibility with both imported and domestic rapier looms makes it a versatile upgrade for existing weaving machines, offering improved speed, pattern capability, and reliability without requiring a complete loom replacement.

Manufacturing Excellence and Heritage

Changshu Textile Machinery Works Co. Ltd. (brand CHANGFANG) was established in 1958 and has over sixty years of experience in shedding device development. The company occupies 168 acres with more than 30,000 square metres of production space, employing over 300 staff including more than 90 technical specialists. It operates a Provincial Enterprise Technology Center and a Textile Machinery Engineering Center, supported by advanced CNC machine tools from Heller, KOPP, and Makino.

The company has undertaken numerous national and provincial research projects, receiving multiple Science and Technology Progress Awards and Textile Technology Innovation Awards. Its product range covers electronic and mechanical dobbies, jacquards, and cam shedding devices, with an annual production capacity of about 60,000 units. This extensive experience and technical capability ensure that every D2861B dobby meets the highest standards of quality and performance.

Frequently Asked Questions

Q: What is the maximum speed of the D2861B dobby?

A: The dobby can operate at speeds up to 650 rpm, depending on the loom configuration and weave complexity.

Q: What type of looms is this dobby compatible with?

A: The D2861B is specifically designed for rapier looms, but it can also be adapted for other loom types with suitable mounting arrangements.

Q: How many wefts can the electronic pattern controller store?

A: The controller can store up to 12,800 wefts, enabling complex pattern programming and quick style changes.

Q: What is the pitch of the dobby?

A: The pitch is 12 mm, which determines the heald frame lift and is suitable for most standard yarn counts.

Q: Does the dobby require special maintenance?

A: The vane pump lubrication system reduces maintenance frequency. Regular oil level checks and periodic cleaning are recommended to ensure optimal performance.

Q: Can this dobby replace older mechanical dobbies on existing looms?

A: Yes, it is designed for retrofit applications. Its low‑position installation type and standard mounting dimensions allow easy replacement of many mechanical dobbies with minimal modification.

Conclusion

The D2861B Electronically Controlled Rotary Dobby from CHANGFANG offers a powerful combination of electronic precision, robust mechanical construction, and high‑speed performance for modern rapier looms. Its conjugate cam drive, high‑capacity bearing system, and flexible pattern control enable weavers to produce complex, high‑quality fabrics with reduced downtime and consistent results. With over sixty years of textile machinery expertise and a strong commitment to innovation, CHANGFANG provides shedding solutions that mills can rely on. To learn more about the D2861B or to discuss your specific weaving requirements, contact the CHANGFANG team today – we are ready to support your productivity goals.
