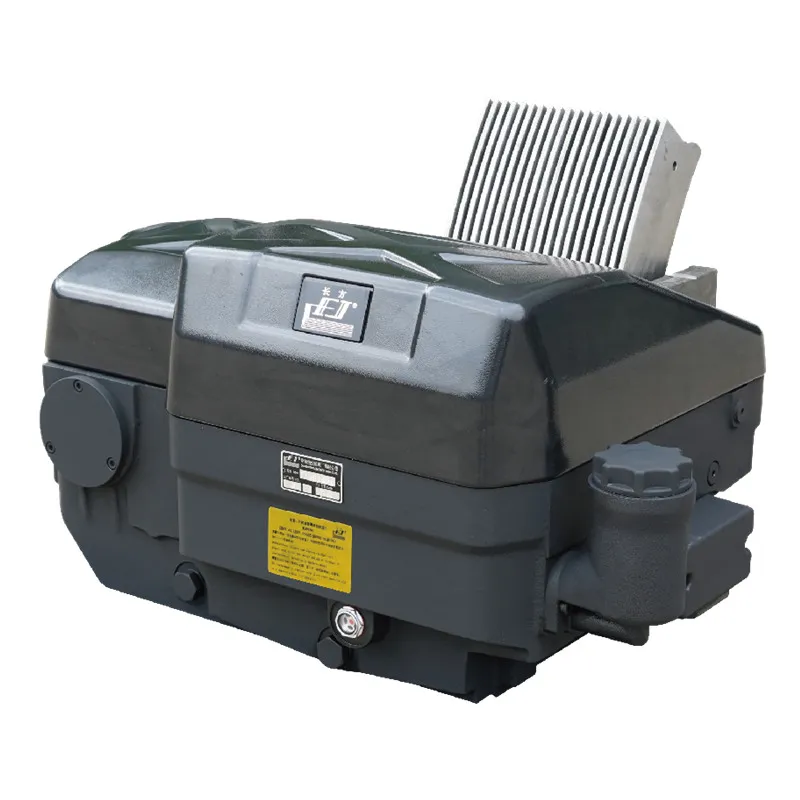

D2861B Electronically Controlled Rotary Dobby
As one of professional manufacturers, CHANGFANG would like to provide you high quality D2861B Electronically Controlled Rotary Dobby. And we will offer you the best after-sale service and timely delivery.
Model:D2861B
Send Inquiry
Product Description
Being a proficient manufacturer, CHANGFANG aims to offer you D2861B Electronically Controlled Rotary Dobby. We promise to provide you with the best after-sale support and prompt delivery.
Product Parameters
| Machine Model | D2861B |
| Type of shedding | Double lift, fullclear open |
| Installation type | In low position |
| Max | 650rpm |
| Pitch | 12mm |
| Cam numbers | 20 |
| Pattern controlling | Electronic |
| Max wefts | 12800 |
| Lubrication | Vane pump oil recycle lubrication |
| Suitable looms | Rapier looms |
· Conjugate cam drive structure, compact and efficient;
· Conjugate cams with different static angles can output the best motion curvein order to meet the requirements of the looms, ensure the stable operation of the heald frame;
· High-precision bearing is used for heald lifing unit to provide much greater bearing capacity,running safely and reliably;
· The hooks selection unit converts the electrical signal by electromagnet, it has the ability of high-frequency absorption and release, so the switching is clear and fast
