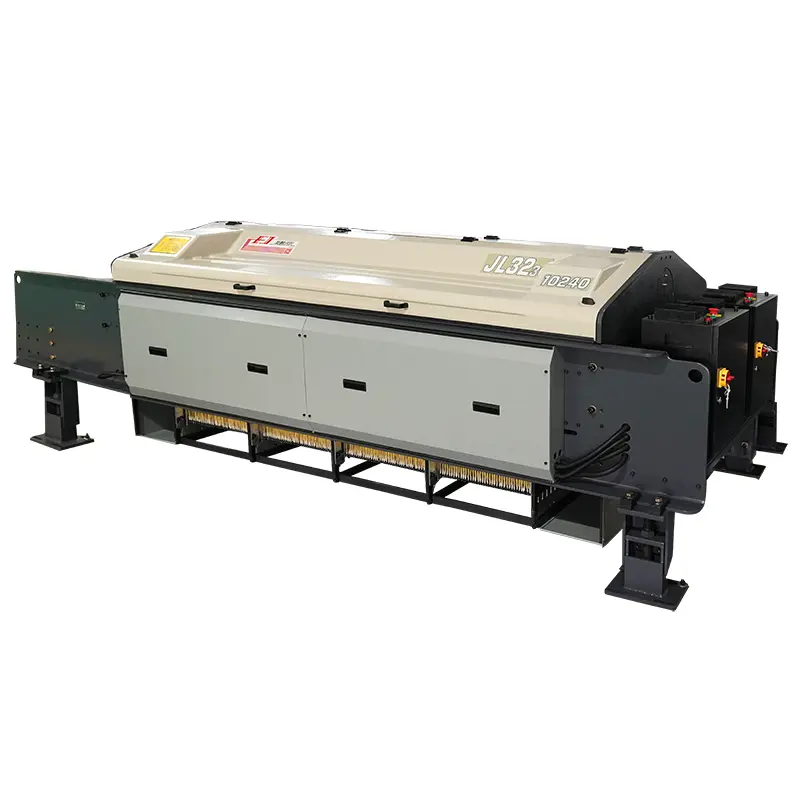

JL3230 High-speed Electronic Jacquard
  • JL3230 High-speed Electronic JacquardJL3230 High-speed Electronic Jacquard

JL3230 High-speed Electronic Jacquard

As one of professional manufacturers in China, CHANGFANG would like to provide you JL3230 high-speed electronic jacquard. And we will offer you the best after-sale service and timely delivery.
Model:JL3230

Send Inquiry

Product Description

Technique parameters

1. Type of shedding: double lift, full clear open

2. Lifting knife mechanism: driven by concentric shaft of conjugate cam

3. Lifting needles: 1408~6144

4. Controller: CFJC320

5. Memory capacity: 4GB(expanded to 32GB is available)

6. Longitudinal lifting packs: 16

7. Overall dimension: 950(width)*1200(height)

Product Parameters

Machine Model JL3230
Shedding form Double-acting full-clear shedding
Motion mechanism Driven by concentric shaft of conjugate cam
Number of hooks 8448~20480
Controller CFJC220/CFJC320/CFJC380
Storage capacity 4GB (Can be expanded to 32GB)
Air cooling system Side mounted
Longitudinal module 32 rows
Outline size 1610(W)×1250(H)


● JL3230 high-speed electronic jacquards can be replaced with two-position modules to meet the requirements of double-layer fabrics.

● Two GT512Ts can weave together, up to 40960 hooks.

● The overall dimension varies with the number of hooks. Please contact CHANGFANG for details.
