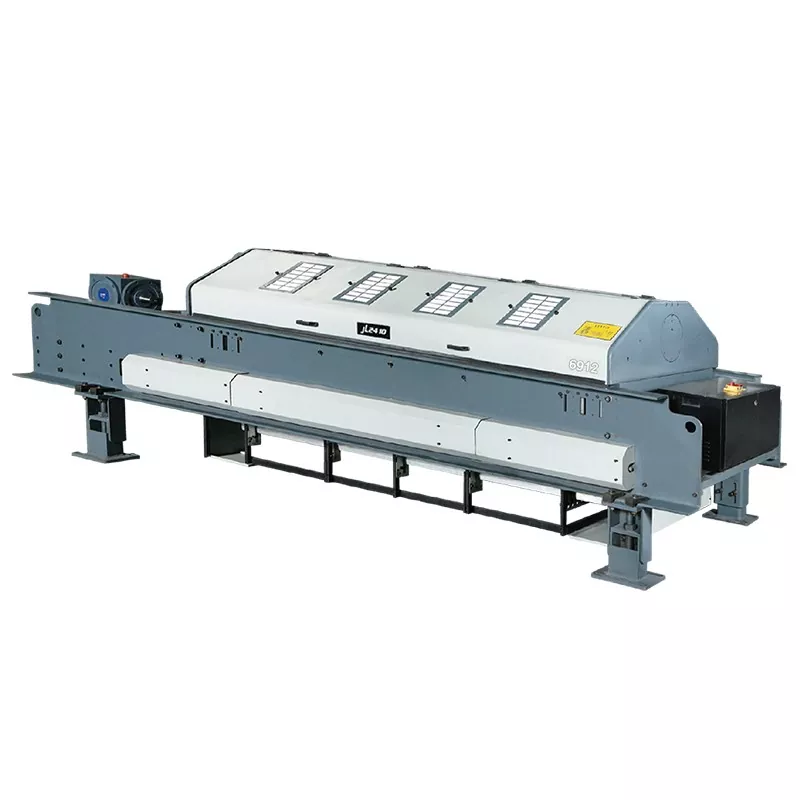

JL2410 High-speed Electronic Jacquard
JL2410 High-speed Electronic Jacquards adopt a double concentric shaft structure driven by conjugate cams. There are 16 rows, 24 rows and 32 rows, ranging from 1408 needles to 20480 needles, with more than 20 needle count models.
Model:JL2410
Send Inquiry
Product Description
JL2410 High-speed Electronic Jacquards are matched with various shuttleless looms such as air jet, rapier and projectile shuttle, and are used to weave various jacquard fabrics, such as furniture fabrics, curtain fabrics, towels, wall coverings, carpets, etc.
Technique parameters
1.Type of shedding: double lift，full clear open
2. Lifting knife mechanism: driven by concentric shaft of conjugate cam
3. Lifting needles: 5376~9216
4. Controller : CFJC320
5. Memory capacity : 4GB（expanded to 32GB is available）
6.Longitudinal lifting packs: 24
7.Overall dimension: 1320(width)*1250(height)
Product Parameters
| Machine Model | JL2410 |
| Shedding form | Double-acting full-clear shedding |
| Motion mechanism | Driven by concentric shaft of conjugate cam |
| Number of hooks | 5376-9216 |
| Controller | CFJC220/CFJC320/CFJC380 |
| Storage capacity | 4GB (Can be expanded to 32GB) |
| Air cooling system | Top mounted |
| Longitudinal module | 24 rows |
| Outline size | 1250(W)×1250(H) |
● All machine models can be replaced with two-position modules to meet the requirements of double-layer fabrics.
● Two GT512Ts can weave together,up to 40960 hooks.
● The overall dimension varies with the number of hooks.Please contact CHANGFANG for details.
