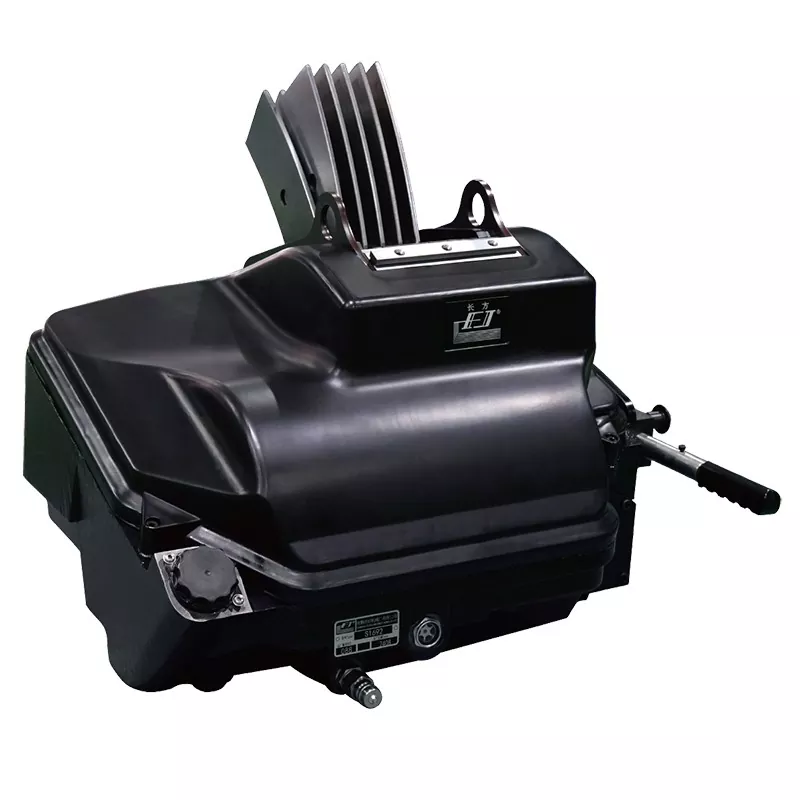

S1692 Cam Shedding Device
The S1692 Cam Shedding Device adopts positive conjugate cam, connecting rod return heddle, and various types of looms such as water jet, air jet, rapier, etc., to efficiently weave simple fabrics such as plain, twill, satin, etc. With cam design optimization technology and precision manufacturing and measurement equipment, it can meet various weaving requirements such as high-speed symmetry, asymmetric style, and ultra-wide width.
Model:S1692
Send Inquiry
Product Description
S1692 is our company's latest developed cam shedding device, which is going to be launched into the market. Positive conjugate cam is used on S1692 Cam Shedding Device to achieve perfect shedding, which is with new appearance and novel interiorstructure design. With good sealing and lubrication reaches every important part of the mechanism. The automaticflat heald device is adoptedto achieve the meshing between cam and swing arm and separation heald leveling. Autonomous optimization design of PO, P3, P4, P5, AL20,AL30, AL40 and other series of cams, matching for various types of looms such as air jet, rapier, etc. They can meet the efficient weaving ofdifferent types of fabric within eight cycles.
Product Parameters
| Machine Model | S1692 |
| Type of shedding | Positive conjugate cam |
| Installation type | In low position |
| Cam numbers | 4-10 |
| Pitch | 12mm |
| Lubrication | Active lubrication of gear pump |
| Separation method | Automatic separation |
| Cycle wefts | 4-8/Wefts |
| Suitable looms | Air-jet and Rapier looms |
