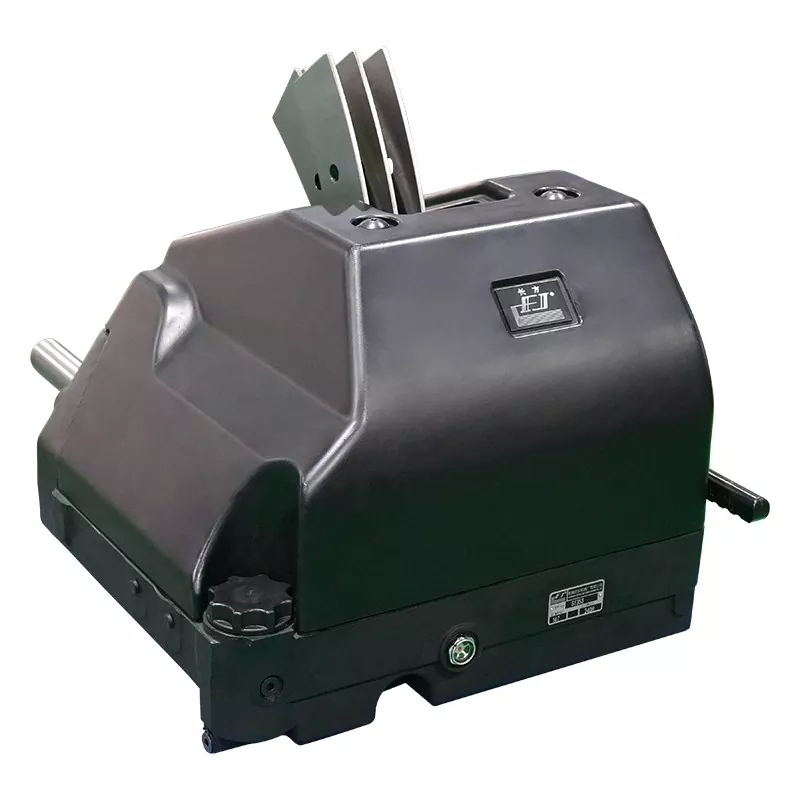

S1353 Positive Cam Motion Device

The CHANGFANG S1353 Positive Cam Motion Device has been developed for more than 20 years. The whole series adopts the activeconjugate cam design and the hamess returned by connecting rod.It is used in various types of looms such as water jet, airjet, rapier, etc. It can meet the requirements of different pattern types within twelve cydles, and can efficienty weave plain, twill, satin and other simple fabrics. With cam design optimization technology and precision manufacturing equipment, it canmeet various weaving requirements such as high-speed symmetry, asymmetric style and uftra-wide machine width.

Model:S1353

Send Inquiry

Product Description

● Positve conjugate cam motion mechanism alms to achieve perfect shedding, PO, AL20and AL40 cams can meetthe needs of different air-jet looms, P3, P4 and P5 cams can meet the needs of rapier looms from narrow width to utra-wide width. Through independent optimization design, the PO canms used in the matching water-jet looms can meet thefoward and backward installation of cams.

● According to the different needs of users, there are lubrication options such as gear pump active lubrication and oil bath self-ubrication.

● S1353 Positive Cam Motion Device adopts the flat heald device with simplestructure and convenient operation to achieve the separation of swing arm and cam.

Technique parameters

1. Type: positive conjugate cam

2. Mounting method: in low position

3. Cam numbers: 4-10

4. Pitch: 12mm

5. Lubrication: active lubrication of gear pump

6. Separation method: special separation with spanner

7. Cycle wefts: 4-8

8. Fabrics to be woven: texture varieties which are within eight cycles

Product Parameters

Machine Model	S1353
Type of shedding	positive conjugate cam
Installation type	In low position
Cam numbers	4-10
Pitch	12mm
Lubrication	Active lubrication of gear purmp
Separation method	Special seperation with sparner
Cycle wefts	4-8
Suitable looms	Alir jet looms
