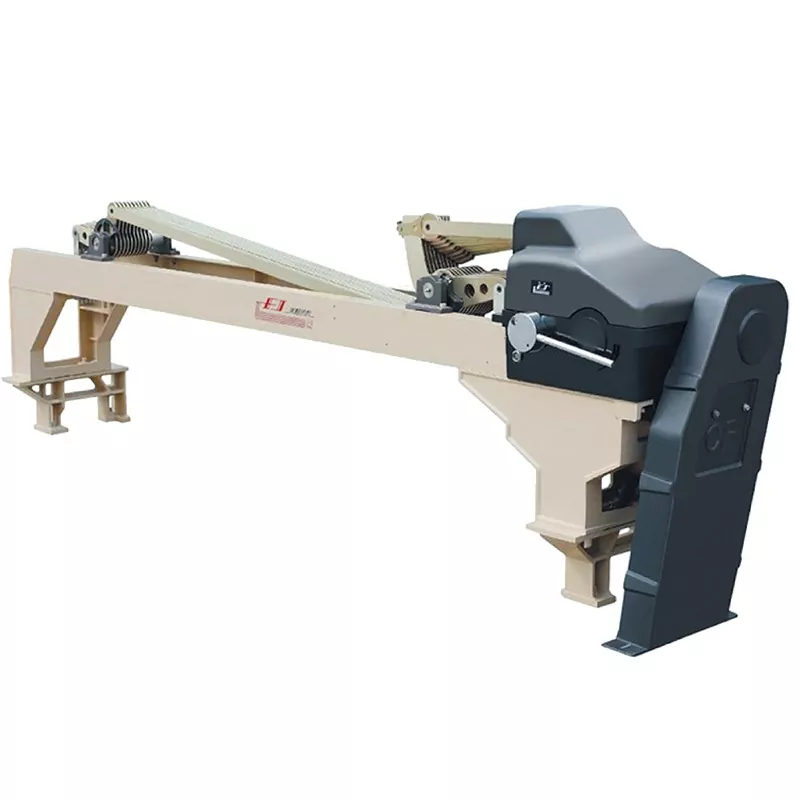

S1350 Positive Cam Motion Device

The S1350 Positive Cam Motion Device adopts positive conjugate cam, connecting rod return heddle, and various types of looms such as water jet, air jet, rapier, etc., to efficiently weave simple fabrics such as plain, twill, satin, etc. With cam design optimization technology and precision manufacturing and measurement equipment, it can meet various weaving requirements such as high-speed symmetry, asymmetric style, and ultra-wide width.

Technique parameters

1. Type: Positive conjugate cam

2. Mounting method: in high position

3. Cam numbers: 4-12

4. Pitch: 14mm

5. Shed: 54-110mm

6. Lubrication: oil-bath self-lubrication

7. Heddle leveling method: eccentric separation

8. Fabrics to be woven: texture varieties which are within ten cycles

9. Suitable looms: various water-jet loom
