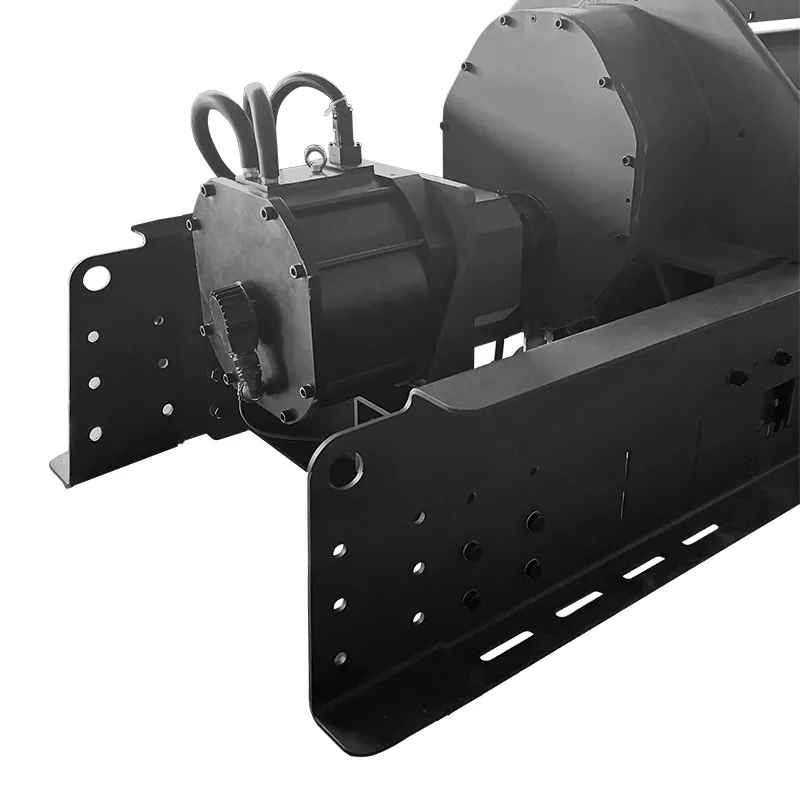

No Vertical Shaft Direct Drive Jacquard Machine

Domestic first application of permanent magnet direct drive motor in the "without vertical shaft system"of jacquard machine. Direct drive motor is with low speed, large torque output characeristics, compared with servo motor, there is no need for deceleration mecha-nism, greatly reducing the failure rate. No Vertical Shaft Direct Drive Jacquard Machine replaces the traditional vertical shaft transmission mode, simple and beautiful, green and energy-saving. Flexible start and stop, reduce the mechanical impact on the jacquard machine, so as to prolong the service life. According to the organizational characteristics of the pattern, the motion curve is optimized, so the operation is more smoothly. According to the process requirements of the fabric, the angular position of the shedding can be easily adjsted. The jacquard machine operates independently and has no additional requirements on the motor power of the loom.
