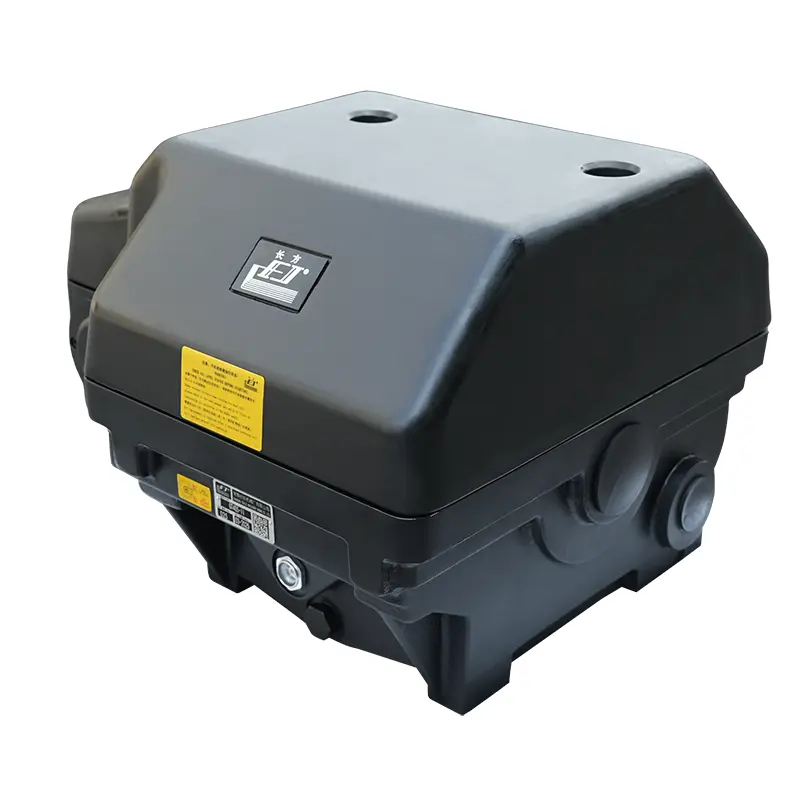

GT405-II Electronically Controlled Rotary Dobby

The main type of GT405-II Electronically Controlled Rotary Dobby is rotary electronic dobby, with conjugate cam drive, positive signal selection and rotary heddle lifting, ensuring high speed, reliability, stability and clarity of shedding movement. The dobby has a full range of types and can be matched with various rapier, air jet, water jet and other looms to weave small pattern long weft fabrics such as cotton, wool, silk and linen.

Technique parameters

1. Type of shedding: double lift, full clear open

2. Mount method: in low position (left and right side)

3. Max. speed for looms:450rpm

4. Pitch:12mm

5. Lifting units:20

6. Pattern controlling method: electronic

7. Lubrication: oil bath lubrication

8. Use: rapier looms

Product Parameters

● Conjugate cam drive structure, compact and efficient;

● Conjugate cams with different static angles can output the best motion curvein order to meet the requirements of the looms, ensure the stable operation of the heald frame;

● High-precision bearing is used for heald lifing unit to provide much greater bearing capacity, running safely and reliably;

● The hooks selection unit converts the electronic signal by electromagnet, it has the ability of high-frequency absorption andrelease, so the switching is cear and fast;
