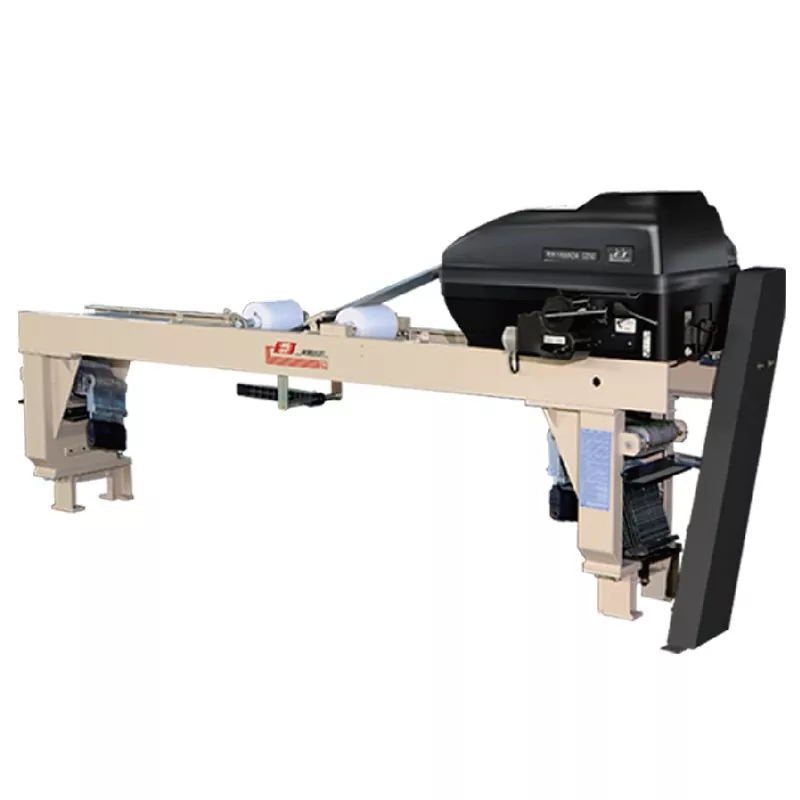

GD50 ASGT418 High Speed Jet Dobby
The main type of GD50 ASGT418 High Speed Jet Dobby is rotary electronic dobby, with conjugate cam drive, positive signal selection and rotary heddle lifting, ensuring high speed, reliability, stability and clarity of shedding movement. The dobby has a full range of types and can be matched with various rapier, air jet, water jet and other looms to weave small pattern long weft fabrics such as cotton, wool, silk and linen.
Model:GD50
Send Inquiry
Product Description
Technique parameters
1. Use: this GD50 ASGT418 High Speed Jet Dobby is applicable to various kind of high-performance water-jet and air-jet looms
2. Control method: cycle peg and card
3. Mounting: In high position
4. Lifting units: 16
5. Pitch: 12mm
Product Parameters
| Machine Model | GD50 | |||||||||
| Type of shedding | Double lift, fullclear open | |||||||||
| Installation type | In high position | |||||||||
| Max | 580rpm | |||||||||
| Pitch | 12mm | |||||||||
| Cam numbers | 16 | |||||||||
| Pattern controlling | cycle peg | |||||||||
| Max wefts | 600 | |||||||||
| Lubrication | Vane pump oil recycle lubrication | |||||||||
| Suitable looms | Water-jet looms | |||||||||
● Conjugate cam drive structure,compact and efficient;
● Conjugate cams with different static angles can output the best motion curvein order to meet the requirements of the looms, ensure the stable operation of the heald frame;
● High-precision bearing is used for heald lifing unit to provide much greater bearing capacity,running safely and reliably;
● The hooks selection unit converts the electronic signal by electromagnet,it has the ability of high-frequency absorption andrelease,so the switching is cear and fast;
