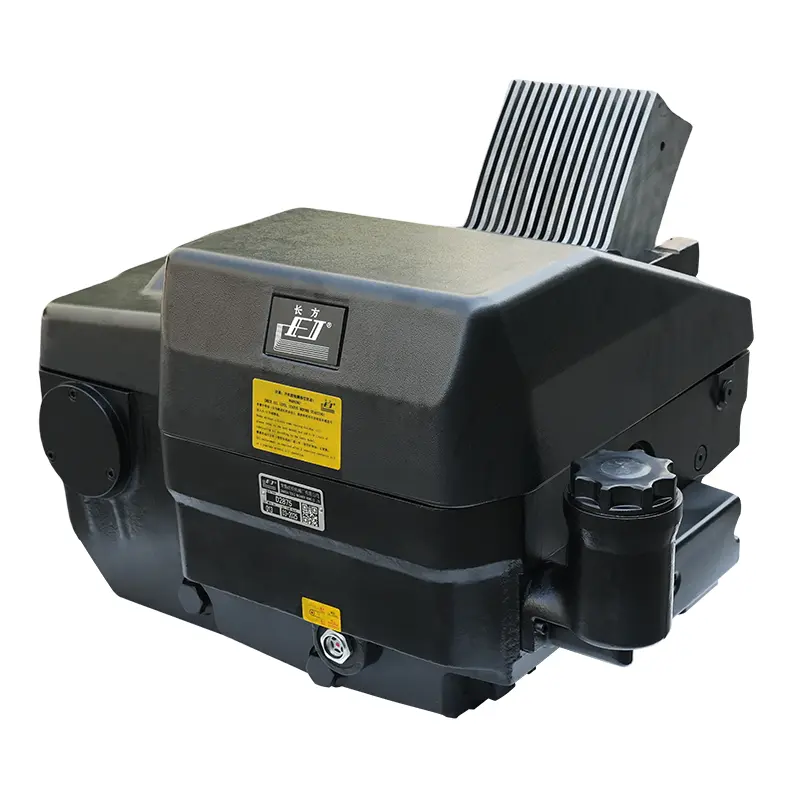

D2875 Electronic Dobby
We have always been committed to the Researc & Development and innovation of textile machinery shedding device, Changfang's latest developed D2875 Electronic Dobby is designed for high-speed weaving: The robust structure of the machine box can withstand greater loads while reducing vibration; The integrated swing drive shaft structure can transmit smoother variable speed and load movement; Lightweight design of needle selection and heald lifting unit, can save more resources; We are committed to continuously developing products with higher performance and higher reliability to help our customers achieve maximum productivity while being environmentally friendly.
Model:D2875
Send Inquiry
Product Description
One of the Chinese companies offering D2875 Electronic Dobby for wholesale is CHANGFANG. For you, we can offer better pricing and competent service. Should you be intrigued by Electronic Dobby, kindly get in touch with us. We adhere to the standard of conscience-driven, committed service at the cost of quality assurance. We adhere to the standard of conscience-priced, devoted service, so you can feel secure.
| Machine Model | D2875 |
| Type of shedding | Double lift, fullclear open |
| Installation type | In low position |
| Max | 700rpm |
| Pitch | 12mm |
| Cam numbers | 16 |
| Pattern controlling | Electronic |
| Max wefts | 12800 |
| Lubrication | Vane pump oil recycle lubrication |
| Suitable looms | Air jet looms |
● Conjugate cam drive structure, compact and efficient;
● Conjugate cams with different static angles can output the best motion curvein order to meet the requirements of the looms, ensure the stable operation of the heald frame;
● High-precision bearing is used for heald lifing unit to provide much greater bearing capacity, running safely and reliably;
● The hooks selection unit converts the electronic signal by electromagnet,it has the ability of high-frequency absorption andrelease, so the switching is cear and fast;
