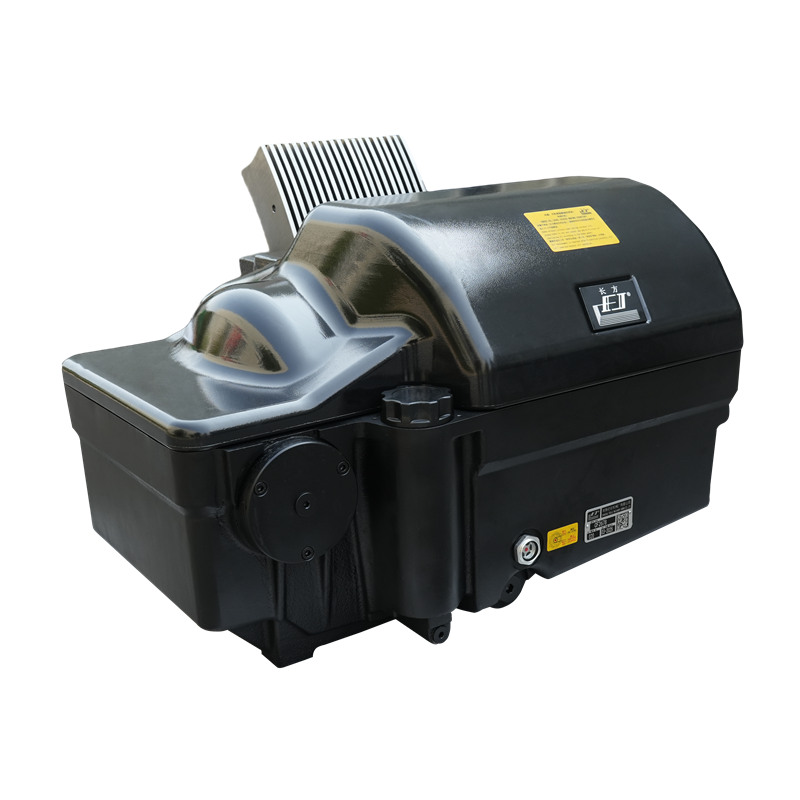

CF2678 Electronically Controlled Rotary Dobby

Technique parameters

1. Type of shedding: double lift, full clear open

2. Mount method: in low position

3. Max. speed for looms:600rpm(depending on the fabrics to be woven)

4. Pitch:12mm

5. Lifting units:20、16

6. Pattern controlling method: electronic

7. Endless wefts: 12800

8. Lubrication: vane pump oil recycle lubrication

9. Use: suitable for various kind of advanced rapier and air-jet looms

Product Parameters

● CF2678 Electronically Controlled Rotary Dobby conjugates cam drive structure, compact and efficient;

● Conjugate cams with different static angles can output the best motion curvein order to meet the requirements of the looms, ensure the stable operation of the heald frame;

● High-precision bearing is used for heald lifing unit to provide much greater bearing capacity, running safely and reliably;

● The hooks selection unit converts the electronic signal by electromagnet, it has the ability of high-frequency absorption andrelease, so the switching is cear and fast;
