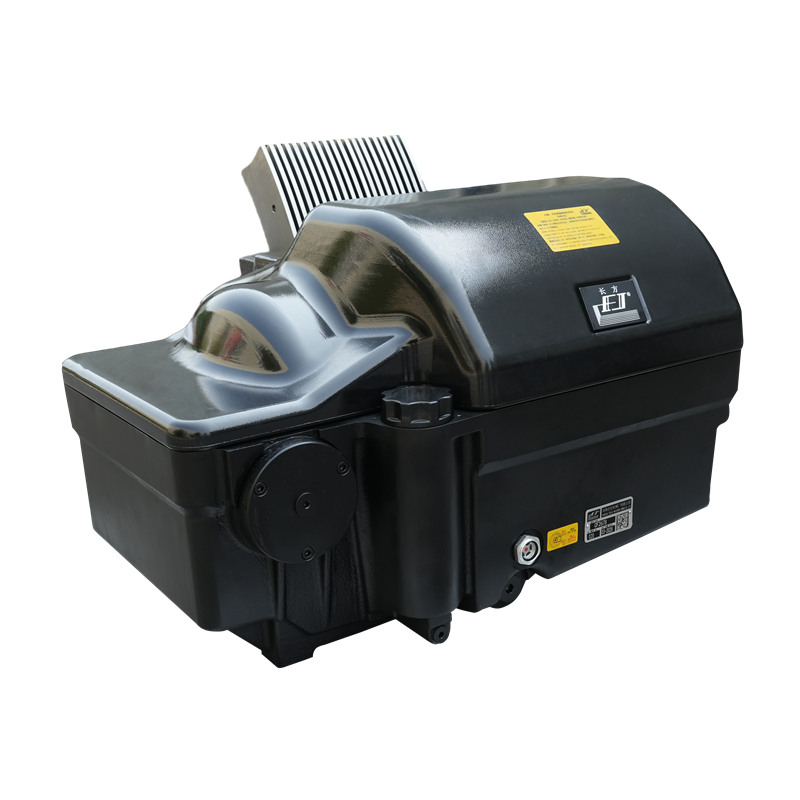

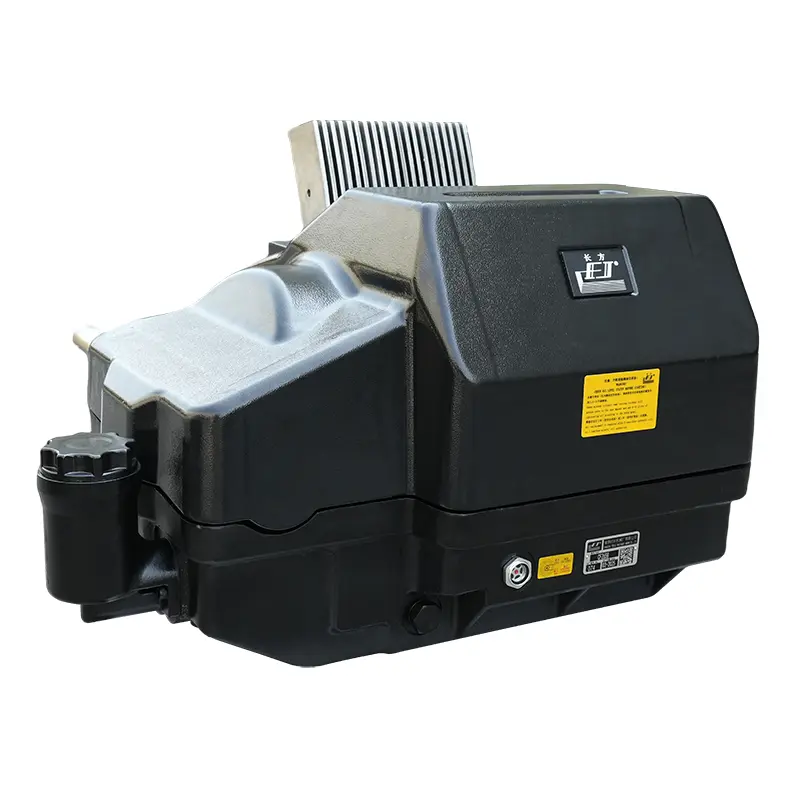

CF2658B Electronically Controlled Rotary Dobby

CHANGFANG is one of China manufacturers & suppliers who mainly produces CF2658B Electronically Controlled Rotary Dobby with many years of experience. Hope to build business relationship with you.

Model:CF2658

Send Inquiry

Product Description

Characteristic

● CF2658B electronically controlled rotary dobby conjugates cam drive structure, compact and efficient;

● Conjugate cams with different static angles can output the best motion curvein order to meet the requirements of the looms, ensure the stable operation of the heald frame;

● High-precision bearing is used for heald lifing unit to provide much greater bearing capacity,running safely and reliably;

● The hooks selection unit converts the electronic signal by electromagnet, it has the ability of high-frequency absorption andrelease, so the switching is cear and fast;

Product Parameters

Machine Model	CF2658B
Type of shedding	Double lift, fullclear open
Installation type	In low position
Max	550rpm
Pitch	12mm
Cam numbers	20
Pattern controlling	Electronic
Max wefts	12800
Lubrication	Vane pump oil recycle lubrication
Suitable looms	Rapier looms
