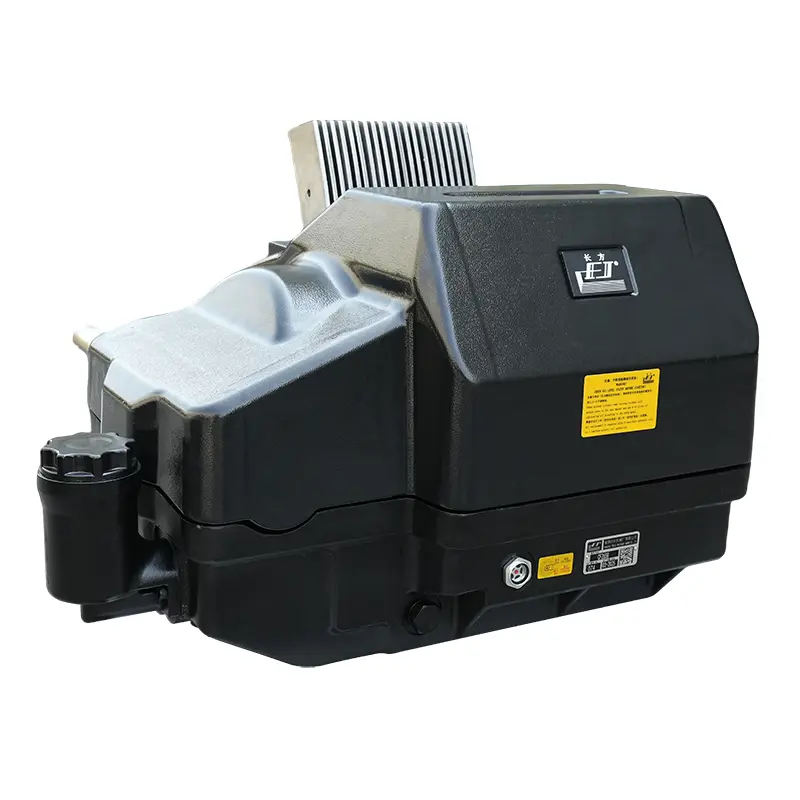

CF2658 Electronically Controlled Rotary Dobby

The main type of CF2658 Electronically Controlled Rotary Dobby is rotary electronic dobby, with conjugate cam drive, positive signal selection and rotary heddle lifting, ensuring high speed, reliability, stability and clarity of shedding movement. The dobby has a full range of types and can be matched with various rapier, air jet, water jet and other looms to weave small pattern long weft fabrics such as cotton, wool, silk and linen.

Model:CF2658

Send Inquiry

Product Description

Technique parameters

1. Type of shedding: double lift, full clear open

2. Mount method: in low position

3. Max. speed for looms: 550rpm (depending on the fabrics to be woven)

4. Pitch: 12mm

5. Lifting units: 20

6. Pattern controlling method: electronic

7. Endless wefts: 12800

8. Lubrication: vane pump oil recycle lubrication

9. Use: CF2658 Electronically Controlled Rotary Dobby is suitable for various kind of advanced rapier looms

Product Parameters

Machine Model	CF2658
Type of shedding	Double lift, fullclear open
Installation type	In low position
Max	500rpm
Pitch	12mm
Cam numbers	20
Pattern controlling	Electronic
Max wefts	12800
Lubrication	Vane pump oil recycle lubrication
Suitable looms	Rapier looms
