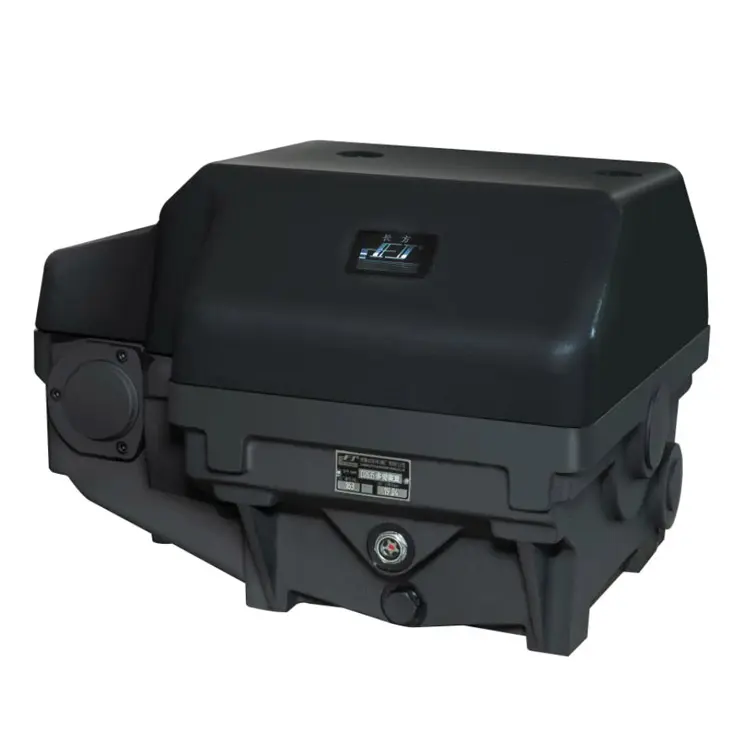

CF2635B Electronically Controlled Rotary Dobby

The main type of CF2635B Electronically Controlled Rotary Dobby is rotary electronic dobby, with conjugate cam drive, positive signal selection and rotary heddle lifting, ensuring high speed, reliability, stability and clarity of shedding movement. The dobby has a full range of types and can be matched with various rapier, air jet, water jet and other looms to weave small pattern long weft fabrics such as cotton, wool, silk and linen.

Technique parameters

1. Type of shedding: double lift, full clear open

2. Mount method: in low position (left and right side)

3. Max. speed for looms:350rpm (depending on the fabrics to be woven)

4. Pitch: 12mm

5. Lifting units:20

6. Pattern controlling method: electronic

7. Lubrication: oil bath lubrication

8. Use: rapier looms
